Entitlements and Legal

Technical Details

The Entitlements and Legal service is used to find any data that is stored within Energy Data Insights on AWS.

When data is registered with Energy Data Insights on AWS, metadata records are stored via the Storage service and an event is generated, which initiates the indexing of that metadata. Indexing is done using Elasticsearch. The Entitlements and Legal service is a secure interface to an internal, fully managed Elasticsearch index. The architecture of the Entitlements and Legal service is shown below.

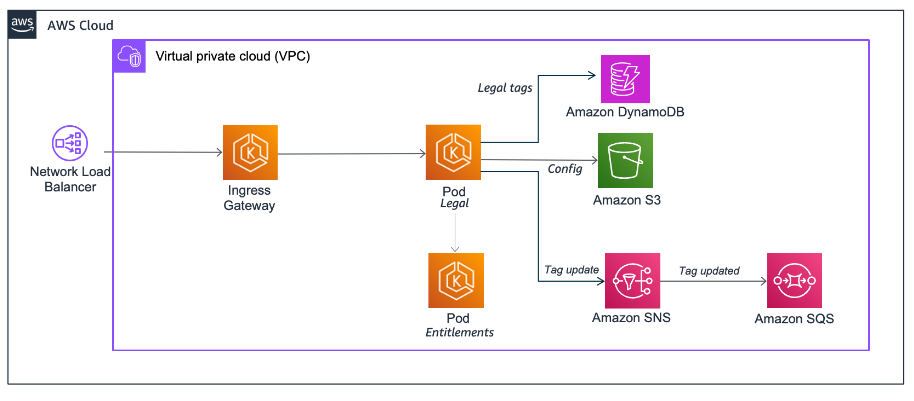

Entitlements and Legal service architecture

This lab explores on groups and how to add a user into appropriate OSDU group using entitlements service. Until we assign a user into groups the user will not be able to access any of the OSDU services or records.

Objective Users and Groups
APIs api/entitlements/v2/groups/
Security Cognito using UserID & Password

Lab

Create a new Python file

Open the Entitlements.py in your text editor

Import required libraries

Import the following required libraries into your Python code:

import boto3
import hmac
import requests
import json
import getpass
import json
import base64
import hashlib

Key Parameters

There are several key parameters that one needs in order to begin this authorization process like AWS cognito Client ID, User Name and Password.

# Insert EDI region here
region = ""

# Insert username
user_name=input('Username:')

# Insert password
password=getpass.getpass("Password:")

# Insert client Id
client_id = ""

# Insert client secret
clientSecret=""

# Insert partitiion Id
osdu_partition = ""

# Insert platform URL
osdu_platform_url = ""

# Authenticate against AWS Cognito
cognito = boto3.client('cognito-idp', region_name = region)

# Compute secret hash
message = user_name + client_id
dig = hmac.new(clientSecret.encode('UTF-8'), msg=message.encode('UTF-8'), digestmod=hashlib.sha256).digest()
secretHash = base64.b64encode(dig).decode()

# Attempt to authenticate with the identity provider
access_token = ""
try:
    auth_response = cognito.initiate_auth(
        AuthFlow="USER_PASSWORD_AUTH",
        AuthParameters={"USERNAME": user_name, "PASSWORD": password, "SECRET_HASH": secretHash},
        ClientId=client_id,
    )
    access_token = auth_response["AuthenticationResult"]["AccessToken"]
    print("Success! You can now use the OSDU Platform APIs")
except:
    print("An error occurred in the authentication process")

Define headers

headers = { “Authorization”: “Bearer " + access_token, “Content-Type”: “application/json”, “data-partition-id”: osdu_partition }

OSDU Entitlements URL

The osdu_platform_url below is specific to the workshop.

osdu_entitlement_url = osdu_platform_url + '/api/entitlements/v2'
print(osdu_entitlement_url)

List all groups

List all groups with your EDI instance.

# List all groups
group_result = requests.get(osdu_entitlement_url + '/groups', headers=headers)
print(json.dumps(group_result.json(), indent=4))

Get members for a group

Get a user member information for all members belonging to a specific group.

# Get members for a group
print("Get members for a group:"+group_result.json()["groups"][0]["email"])
result = requests.get(osdu_entitlement_url + '/groups/' + group_result.json()["groups"][0]["email"] + '/members?limit=100', headers=headers)
print(json.dumps(result.json(), indent=4))

List groups in which you are assigned to

Get all groups which you are a member of.

# List groups in which you are assigned to
result = requests.get(osdu_entitlement_url + '/members/' + user_name + '/groups?type=NONE', headers=headers)
print(json.dumps(result.json(), indent=4))

Create a new group

Create a new group for testing.

# Create a new group
group_name="data.testing.user"+user_name.split('@')[0]
print('My group name is: '+group_name)
group_body = {
    "name": group_name,
    "description": "Meant for testing"
}

# Check if you are already part of this group from previous run
existing_group = ""
for group in result.json()["groups"]:
    if group["name"] == group_name:
        existing_group = group

# Add new group if it does not already exist
if(existing_group!=''):
    print(f"You are already a member of group with name {group_name}.")
else:
    print('My group name is: '+group_name)
    group_body = {
        "name": group_name,
        "description": "Meant for testing"
    }
    group_result = requests.post(osdu_entitlement_url + '/groups', headers=headers, json=group_body)
    print ("Added new group:")
    print(json.dumps(group_result.json(), indent=4))

Lab complete

Congratulations! You have completed this lab!
