Search

Technical Details

The Search service is used to find any data that is stored within Energy Data Insights on AWS.

When data is registered with Energy Data Insights on AWS, metadata records are stored via the Storage service and an event is generated, which initiates the indexing of that metadata. Indexing is done using Elasticsearch. The Search service is a secure interface to an internal, fully managed Elasticsearch index. The architecture of the Search service is shown below.

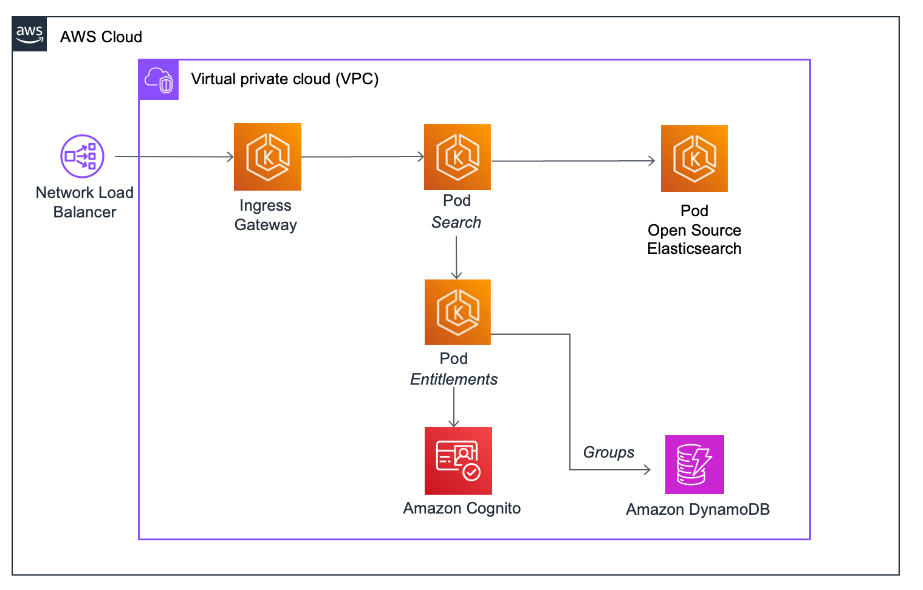

Search service architecture

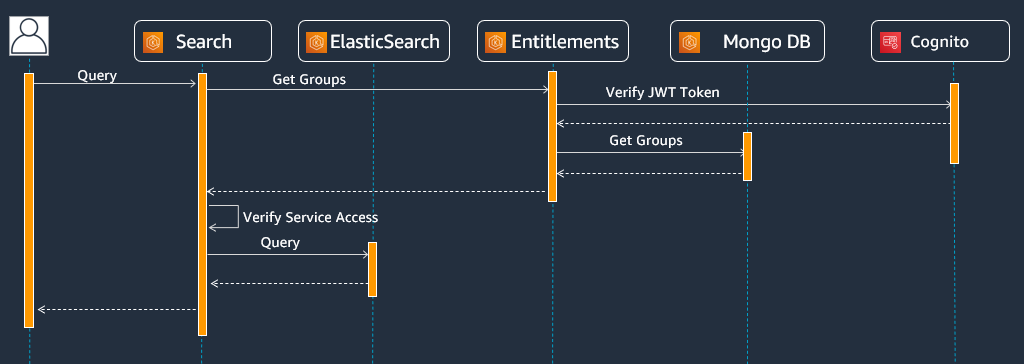

Search execution flow can be diagramed as follows. Search service execution flow

Search services allow running various queries against the EDI:

– Full-text

– Field ranges

– Field match

– Sort, Aggregations, Filters

– Geo-Spatial coordinates

– Limits & Pagination

The Search API can be used for queries and queries with cursor. In order the user performing the search needs to have membership in service.earch.user (the searched records’ ACL as Viewers).

Query structure

The search service follows Apache Lucene syntax:

{
    "kind": "opendes:wks:master-data--Well:1.0.0 ",
    "query": "Text query",
    "offset": 0,
    "limit": 1000,
    "sort": {"fields": ["id"],
        "order": ["ASC"]},
    "queryAsOwner": true,
    "spatialFilter": {
        "field": "data.SpatialLocation.Wgs84Coordinates",
        "byDistance": {
            "point": {
                "longitude": 5.1580810546875,
                "latitude": 52.859180945520829
            },
            "distance": 10000
        }
    },
    "trackTotalCount": true,
    "returnedFields": ["id","kind"],
    "aggregatedBy": "kind"
}

Some of the main query parameters are:

  • kind: The kind of the record to query

  • query: The query string in Lucene query string syntax

  • offset: The starting offset from which to return results

  • limit: The maximum number of results to return from the given offset. If no limit is provided, then it will return 10 items

  • sort: Allows you to add one or more sorts on specific fields queryAsOwner: If true, the result only contains the records that the user owns. If false, the result contains all records that the user is entitled to see. Default value is false

  • spatialFilter: A spatial filter to apply

  • returnedFields: The fields on which to project the results

In this lab you will make API calls to retrieve data from the OSDU platform. | Objective | Search for wells in the OSDU Platform | | – | –| | APIs | /api/search/v2/query/ | | Security | Cognito using UserID & Password |

Lab

Create a new Python file

Open the Search.py in your text editor

Import required libraries

Import the following required libraries into your Python code:

import boto3
import hmac
import requests
import json
import getpass
import json
import base64
import hashlib

Authenticate against AWS Cognito

Code below will prompt you for a user name and password. Enter the username and password emailed to you.

# Insert EDI region here
region = ""

# Insert username
user_name=input('Username:')

# Insert password
password=getpass.getpass("Password:")

# Insert client Id
clientId = ""

# Insert client secret
clientSecret=""

# Insert partitiion Id
osdu_partition = ""

# Insert platform URL
osdu_platform_url = ""

# Authenticate against AWS Cognito
cognito = boto3.client('cognito-idp', region_name = region)

# Compute secret hash
message = username + clientId
dig = hmac.new(clientSecret.encode('UTF-8'), msg=message.encode('UTF-8'), digestmod=hashlib.sha256).digest()
secretHash = base64.b64encode(dig).decode()

# Attempt to authenticate with the identity provider
access_token = ""
try:
    auth_response = cognito.initiate_auth(
        AuthFlow="USER_PASSWORD_AUTH",
        AuthParameters={"USERNAME": username, "PASSWORD": password, "SECRET_HASH": secretHash},
        ClientId=clientId,
    )
    access_token = auth_response["AuthenticationResult"]["AccessToken"]
    print("Success! You can now use the OSDU Platform APIs")
except:
    print("An error occurred in the authentication process")

# Headers
headers = {
    "Authorization": "Bearer " + access_token,
    "Content-Type": "application/json",
    "data-partition-id": osdu_partition
}

EDI Search URL

The osdu_platform_url below is specific to the session

osdu_search_url = osdu_platform_url + '/api/search/v2/query/'
print(osdu_search_url)

Query

The query below follows Lucene Query Syntax and provides wildcard, boolean operators and fuzzy search. More Query Syntax.

Note that the query below uses version 0.2.0 of the schema and will return all wells in the platform.

The below query will return all Wellbores which are belong to the Well ID 8787.

# EDI query
query_get_all_wells = {
    "kind": "osdu:wks:master-data--Wellbore:1.0.0",
    "query":"data.WellID:\"osdu:master-data--Well:8787:\""
}

The query for the search(above) is passed through the json parameter

result = requests.post(osdu_search_url, headers=headers, json=query_get_all_wells)

Inspect the result

Upon inspection, note the “totalCount” returned, and which represents the number of wells in the OSDU platform.

The query however only returned 10 wells. This is by default and can be changed using the “limit” parameter.

More on using “limit” below.

# Print result
print(json.dumps(result.json(), indent=4))

Query w/ limits, offsets and subsets

limit controls the number of results returned. Default = 10. Max = 1000.

offset is used to support pagination.

With offset = 100 and limit = 100, the query below returns the second set of 100 wells.

returnedFields is used when you want only a specific set of fields

# Query w/ limits, offsets and subsets
query_2 = {
        "kind": "osdu:wks:master-data--Well:1.0.0",
        "limit": 100,
        "offset": 100,
        "returnedFields": ["data.Source"]
    }

result_2 = requests.post(osdu_search_url, headers=headers, json=query_2)

Inspect results

Note both the number of wells and the limited subset of fields returned

Lets try few more search queries

(a) List all wellbores which are belongs to Well ID starting with 8

query = {
    "kind": "osdu:wks:master-data--Wellbore:1.0.0",
    "query": "data.WellID:(Well AND 8???)",
    "sort": {
        "field": ["data.WellID"],
        "order": ["DESC"]
    }
}
result = requests.post(osdu_search_url, headers=headers, json=query)
print(json.dumps(result.json(), indent=4))

(b) Get logs with bottom measured depth between 2000 and 3000

query = {
    "kind": "osdu:wks:work-product-component--WellLog:1.0.0",
    "query": "data.BottomMeasuredDepth:[2000 TO 3000]"
}
result = requests.post(osdu_search_url, headers=headers, json=query)
RenderJSON(result.json())

(c) Geo-Spatial query

query = {
    "kind": "osdu:wks:master-data--Well:1.0.0",
    "spatialFilter": {
        "field": "data.SpatialLocation.Wgs84Coordinates", "byDistance": {
            "point": {
                "longitude": 5.1580810546875,
                "latitude": 52.859180945520826
                },
            "distance": 100000
            }
        }
    }
result = requests.post(osdu_search_url, headers=headers, json=query)
print(json.dumps(result.json(), indent=4))

Lab complete

Congratulations! You have completed this lab!

Great, you have successfully authenticated against EDI platform on AWS. Now, let’s explore Dataset service.
